ROBOT INTELLIGENT CONTROLLER KITSAdvanced

JetRick

Edge AI & AMR compatible controller

  • 1-year warranty
  • Built on PRAN
Request a quote

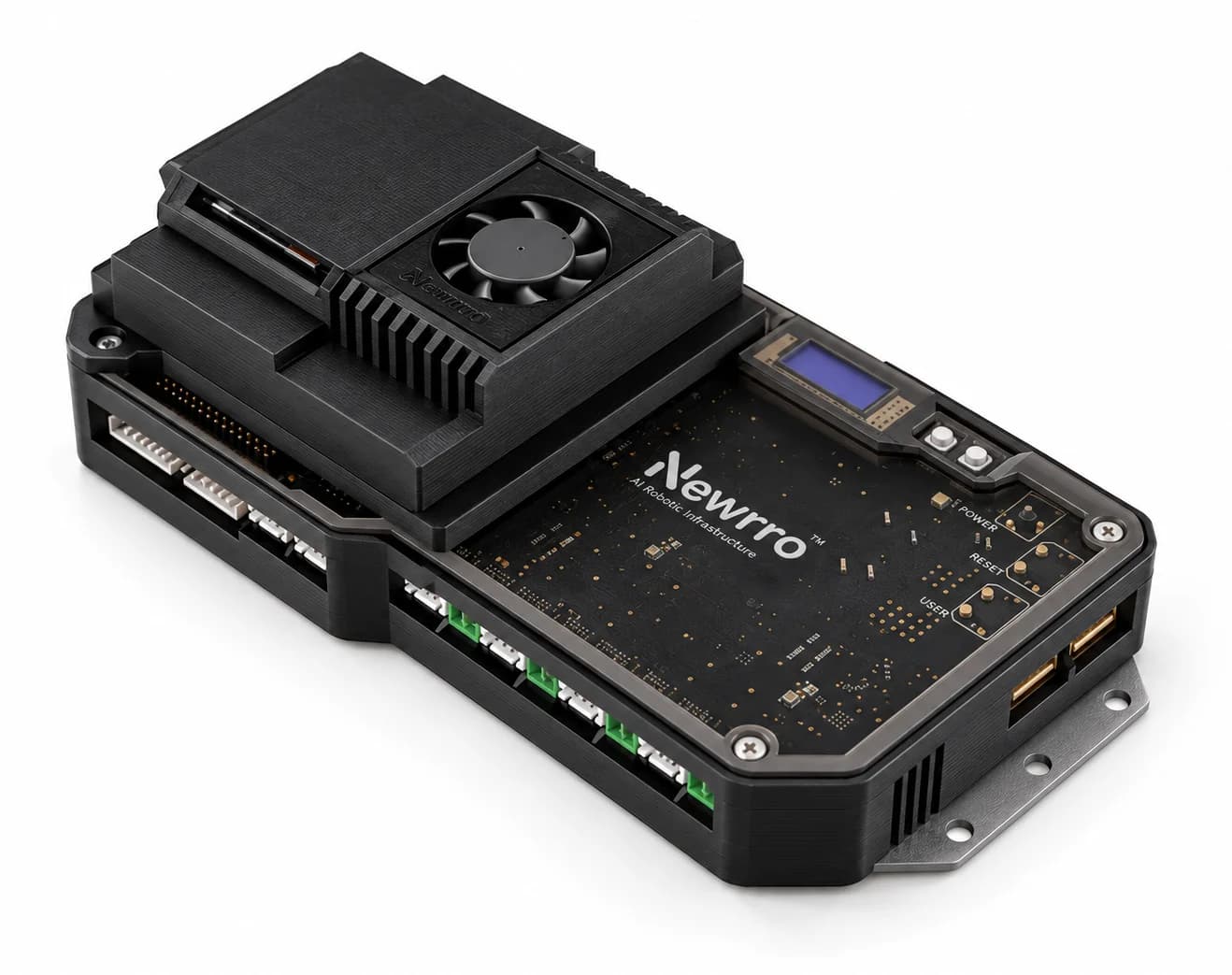

JetRick edge AI controller with its Jetson module and heatsink, three-quarter view

01 · OVERVIEW

The advanced edge AI controller in the RICK series, for AMRs, industrial applications and research. Built on NVIDIA Jetson Orin Super, delivering 67 TOPS for advanced AI workloads, and designed to replace imported controllers directly.

Ideal forAdvanced engineering colleges, robotics developers, AMR manufacturers, edge AI research labs.

02 · KEY FEATURES

What JetRick does.

  • NVIDIA Jetson Orin Super

    67 TOPS of edge AI.

  • 256GB SSD

    For OS, ROS and data logging.

  • Integrated 4-channel encoder motor driver

    With current feedback.

  • Built-in IMU

  • AMR integration

    CAN Bus, Gigabit Ethernet and USB 3.0.

  • Built to replace imported AMR controllers

    Directly.

  • Protection

    Short-circuit, thermal and reverse-polarity.

03 · SOFTWARE AND AI

Software and AI capabilities.

[SUPPLY]Software and AI capabilities

04 · TECHNICAL SPECIFICATIONS

Full specifications.

Computing unit

Core processor
NVIDIA Jetson Orin Super — 67 TOPS
Storage
256GB SSD, for complex OS environments, ROS frameworks and data logging
Motor driver
Integrated 4-channel encoder motor driver with precision current feedback
Onboard sensors
Built-in IMU for spatial mapping, navigation and orientation
Connectivity
WiFi, Bluetooth, Gigabit Ethernet
Expansion
USB 3.0, GPIO, I2C, UART, SPI, CAN Bus

Power system

Battery
24V / 12V high-capacity Li-ion compatibility with advanced BMS (battery not included)
Charging
Charger included, with charging indicator
Protection
Short-circuit, thermal, reverse polarity

Mechanical

Weight
Approx. 1kg
